XGN-40.5 Fixed Metal-Enclosed Switchgear

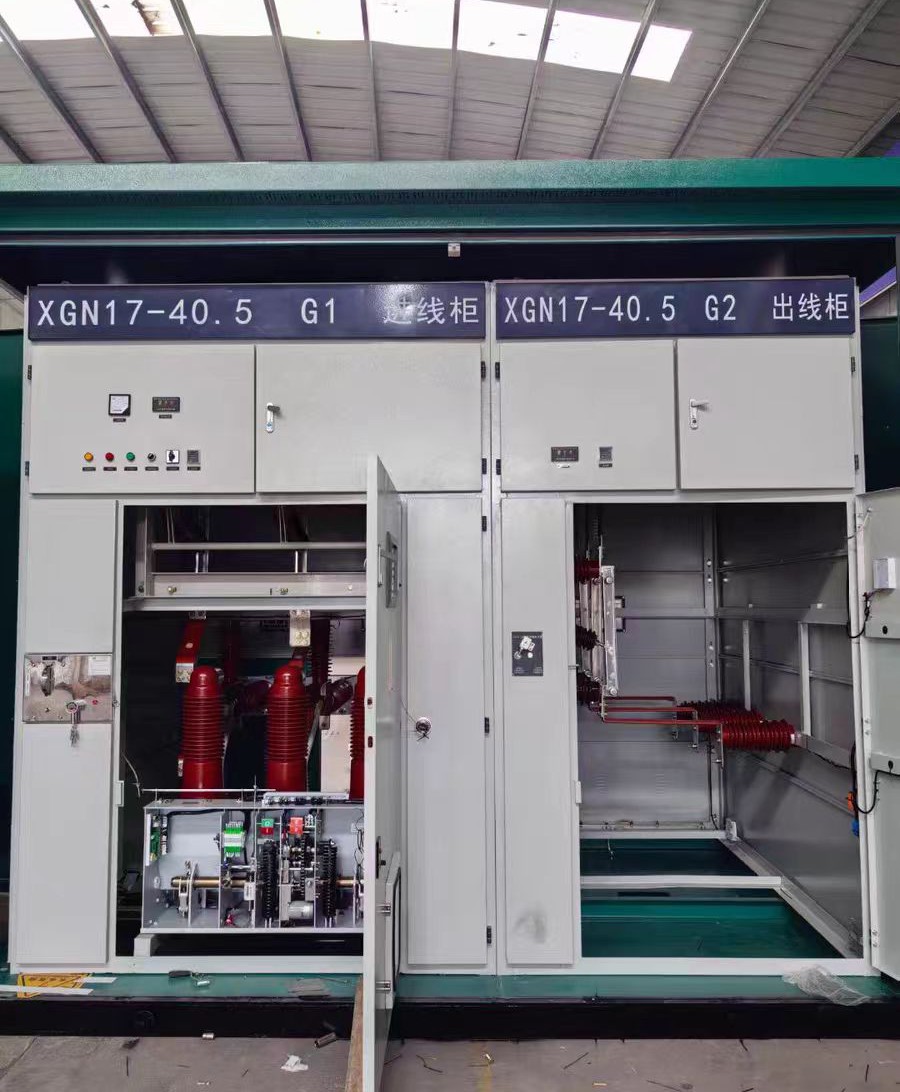

XGN-40.5 switchgearXGN-40.5 in the workshop
HV Switchgear

XGN-40.5 Fixed Metal-Enclosed Switchgear

Fixed-type AC metal-enclosed switchgear for 40.5kV (35kV-class) distribution networks.

Rated Voltage40.5 kV
Rated Current1250 / 1600 / 2000 A
Breaking Current25 / 31.5 kA
Short-Time Withstand25 / 31.5 kA (4s)
Peak Withstand63 / 80 kA
Power-Frequency Withstand95 kV / 1 min
Lightning Impulse185 kV
Protection LevelIP4X
StandardsGB 3906 / IEC 62271
Request a Quote

✓ Backed by a 12-month warranty.

Key Features

  • 40.5kV / 35kV-class rating.
  • Fixed metal-enclosed design.
  • Vacuum circuit breaker.
  • For substations & industry.
