What We Supply
Scaffolding Systems & Accessories
Scaffolding systems, site mesh and construction steel — with couplers, adjustable jacks and connection sleeves supplied for every system.

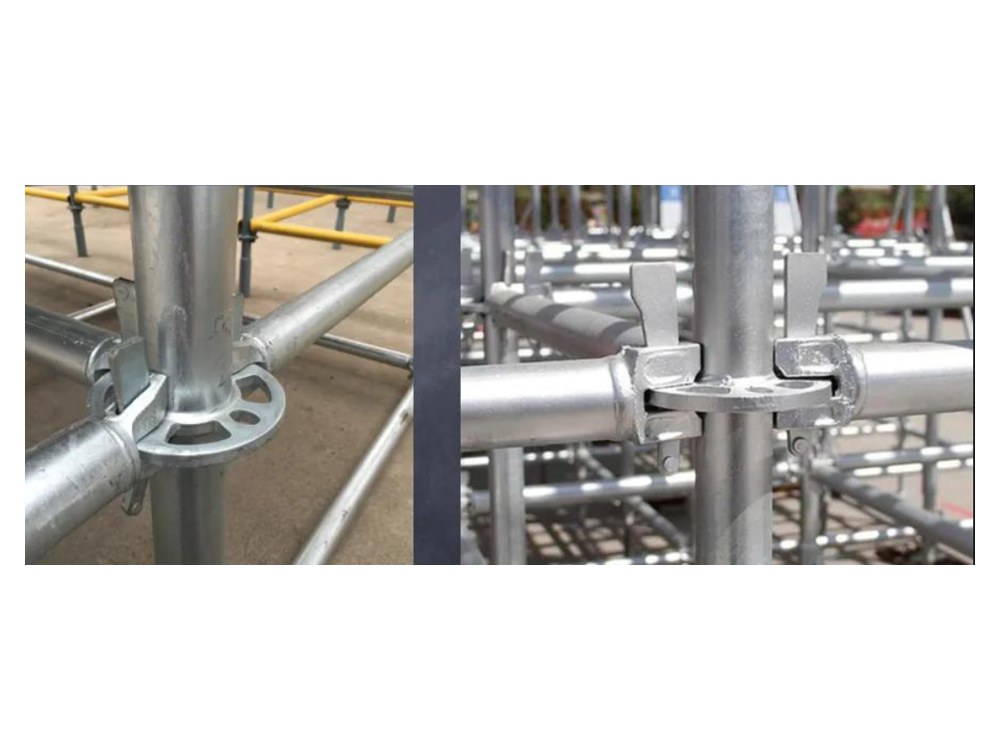

Ringlock Scaffolding
JGJ/T 231-2021 · 48 & 60 series
- 48 series Φ48.3×3.2mm Q355B; 60 series Φ60.3×3.2mm (heavy / bridge)
- 8-hole rosette — 4 ledgers + 4 diagonals per node
- Standards 0.5–3.0m · ledgers 0.3–2.4m
- Self-locking — no extra couplers or braces

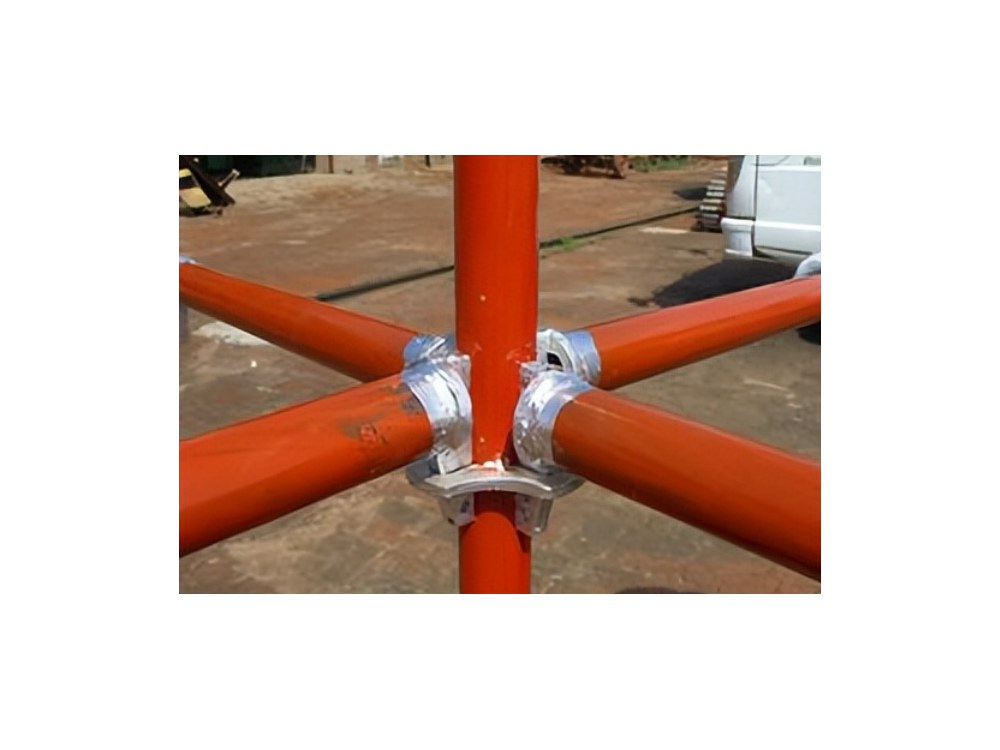

Wheel-Coupler Scaffolding
T/CCIAT0003-2019
- Standard Φ48×3.0mm Q235
- Wheel disc 10mm thick — 4 ledgers per node
- Ledgers 0.6 / 0.9 / 1.2 / 1.5 / 1.8 m
- For indoor formwork support / shoring

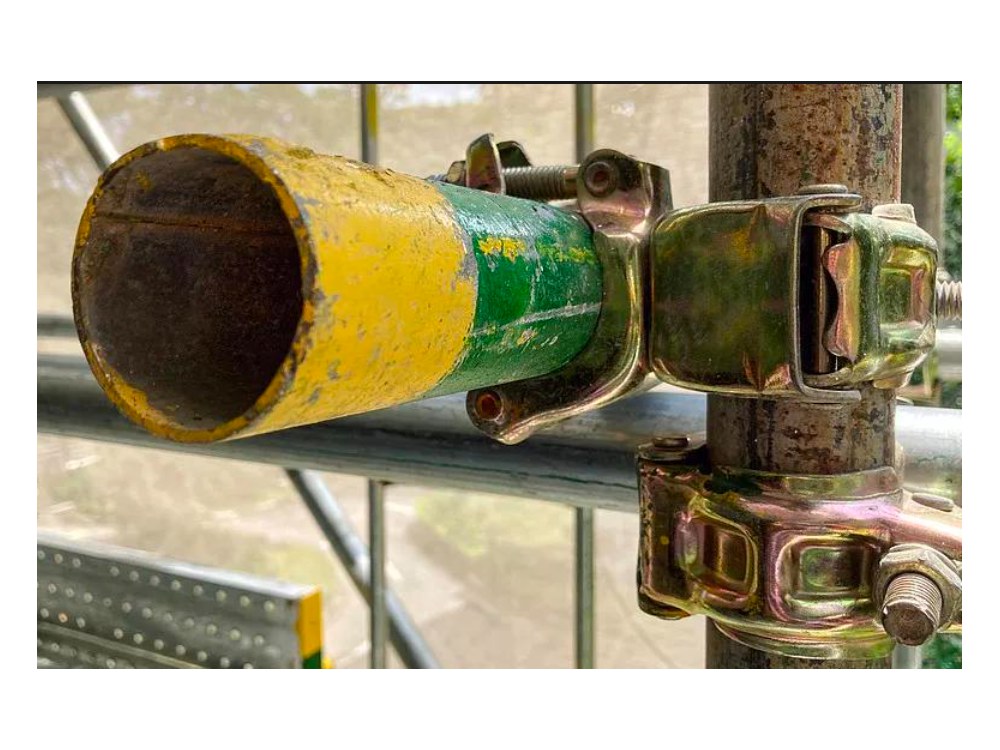

Tube & Coupler Scaffolding
Q235B tube + KTH330-08 couplers
- Scaffold tube Φ48.3×3.0mm Q235B
- Lengths 1 / 1.5 / 2 / 2.5 / 3 / 4 / 6 m
- Right-angle, swivel & sleeve couplers (KTH330-08)
- Bolt torque 40–65 N·m

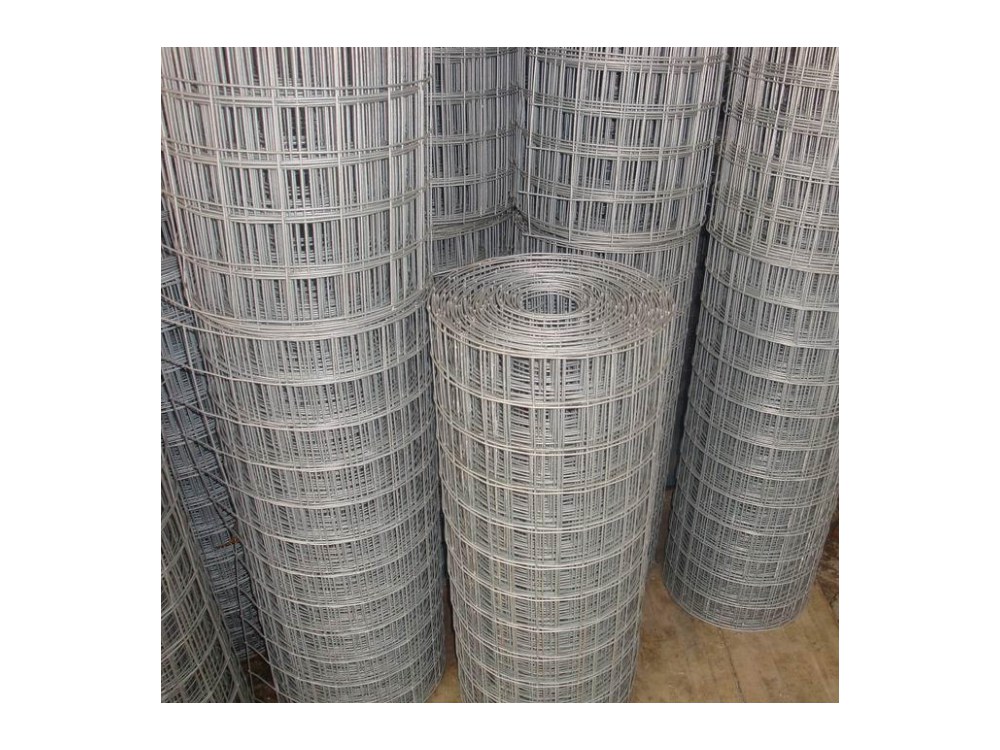

Welded Wire Mesh
Anti-crack & reinforcement mesh
- Welded / wire mesh Φ0.6–2.0mm
- Roll rendering mesh Φ0.6–1.0mm (wall / roof anti-crack)
- Panel welded mesh Φ1.2–2.0mm (garage / roof concrete)
- Roofing, floor & wall reinforcement

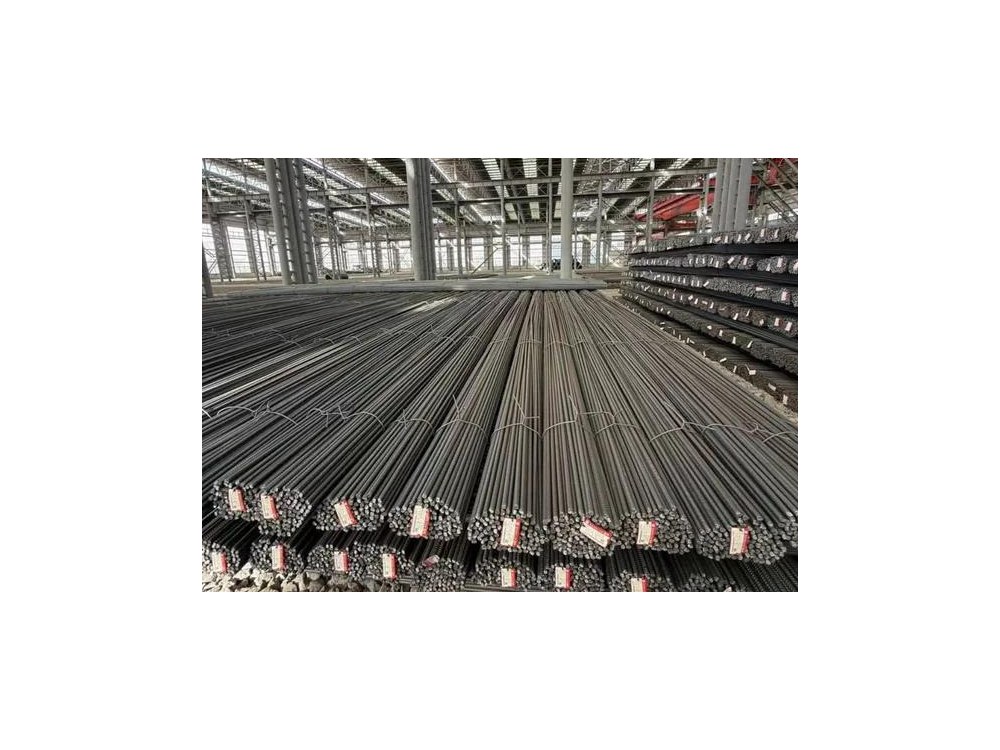

Reinforcing Bar (Rebar)
GB/T1499 · HPB300 / HRB400 / HRB500
- Plain round HPB300 — stirrups & small bars
- Deformed HRB400 / HRB500(E) — main & seismic
- Diameters 6–32 mm
- Straight bar / coil / wire rod

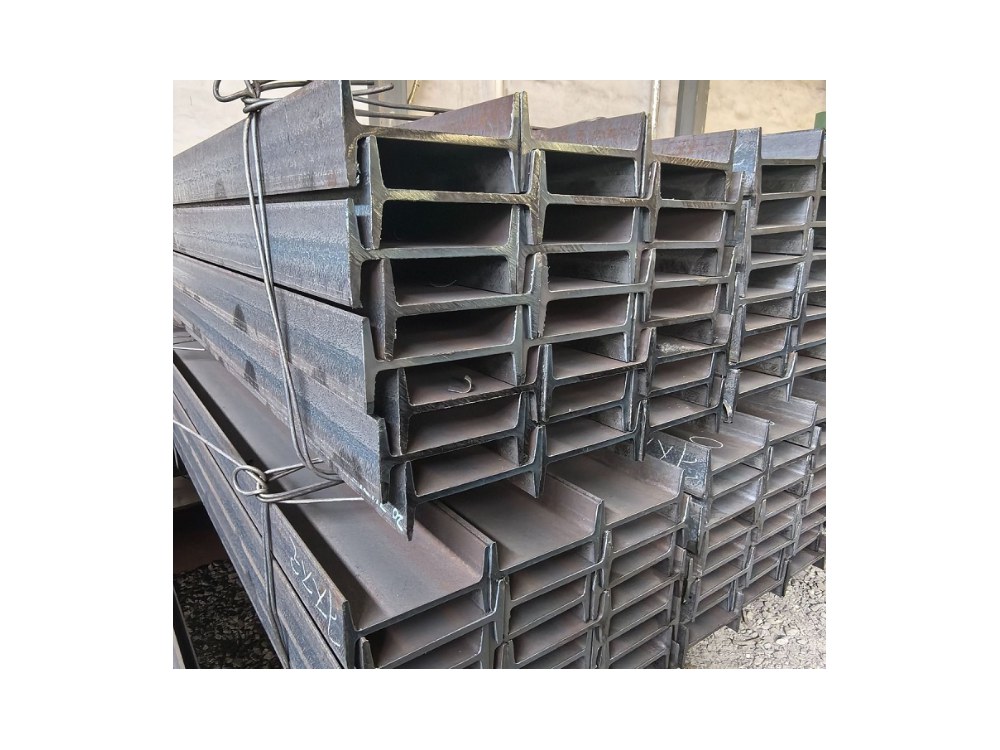

Structural Sections
I-beam · H-beam · Channel · Angle
- I-beam 10# / 12# / 14# / 16#
- H-beam & channel (8# / 10#)
- Angle steel — equal & unequal
- Cantilever scaffolds, beam bearing & supports

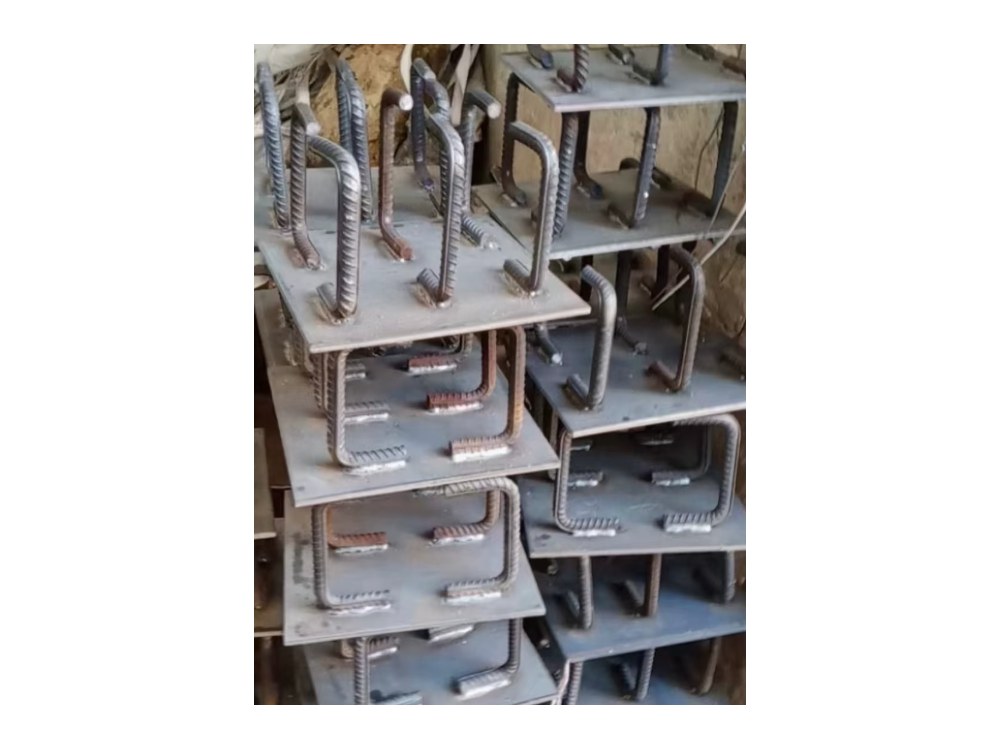

Steel Plate & Embedded
Plate 3–10mm · embedded parts
- Hot-rolled plate 3 / 5 / 8 / 10 mm
- Water-stop steel plate
- Embedded plates with anchor bars
- L / T / cross connection parts

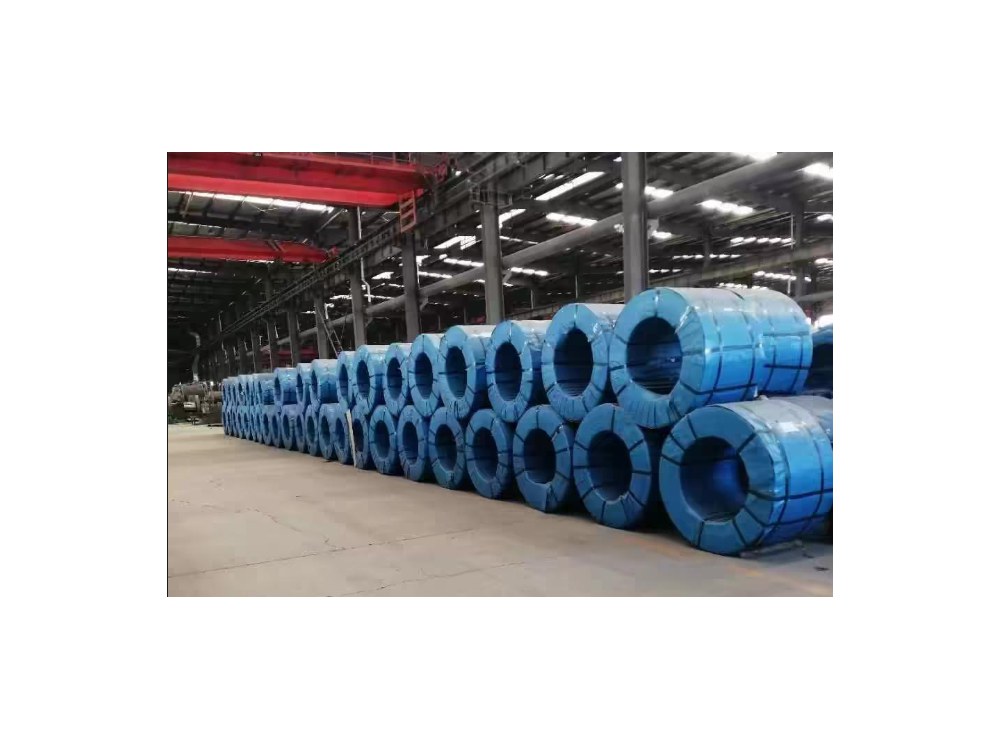

Prestressing Strand
PC Strand · Φ15.2mm 1×7 · 1860 MPa
- 7-wire PC strand, Φ15.2 mm
- Tensile strength 1860 MPa
- For bridges & anchor cables
- Long-span prestressed concrete
